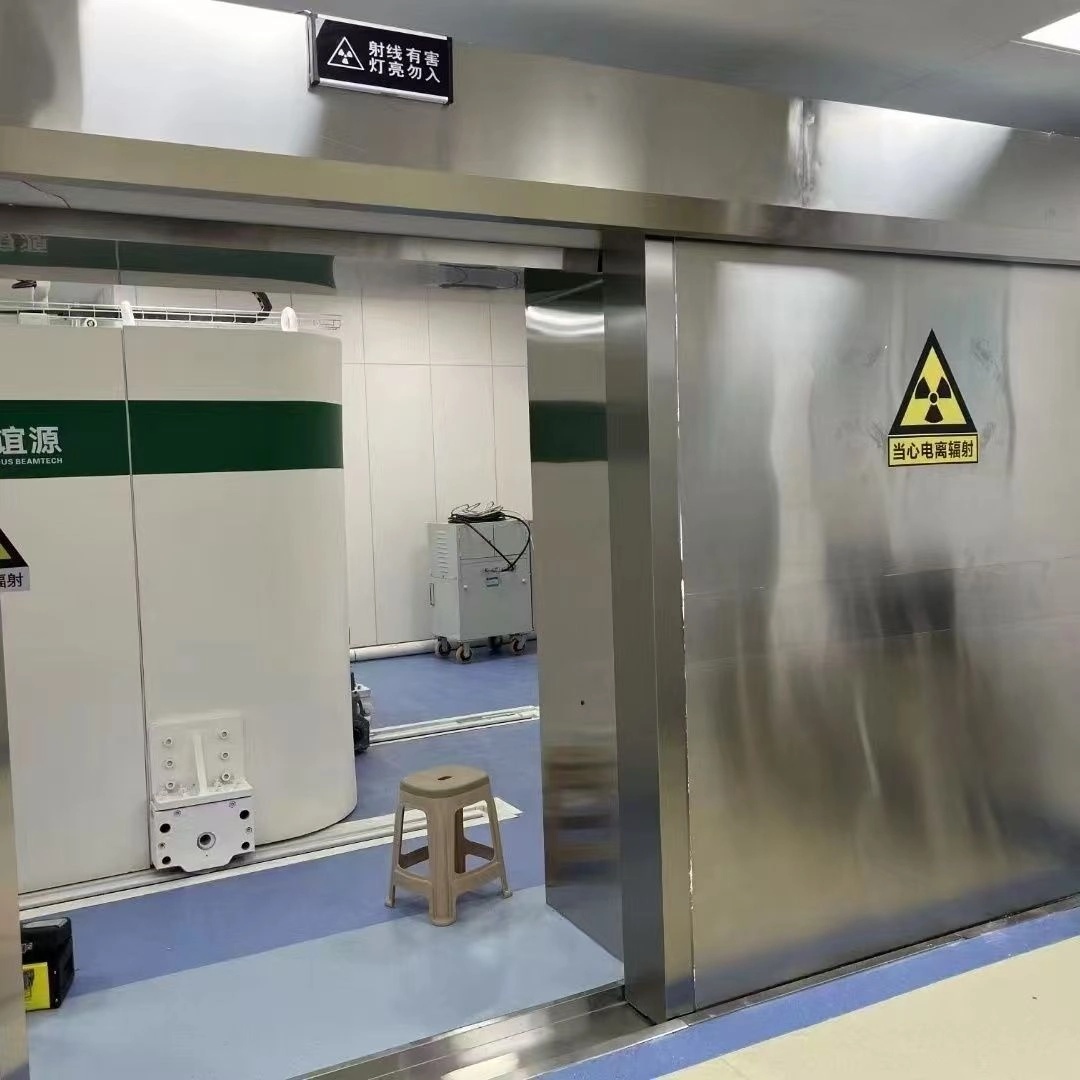

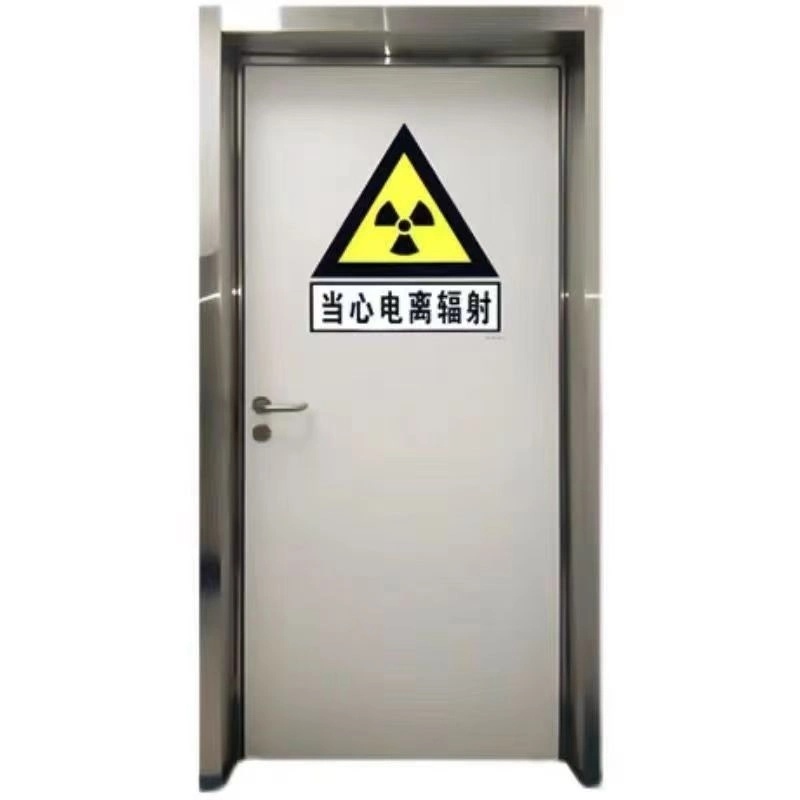

Lead Lined Door for X-Ray Radiation Protection
Highly Effective Shielding: Lead's high density effectively attenuates and absorbs ionizing radiation, including X-rays and gamma rays.
Reliable and Airtight: The unique structural design ensures a tight fit between the door and frame, minimizing radiation leakage.
Flexible Customization: The door can be customized based on protection level, space dimensions, frequency of use, and other requirements to meet the precise protection requirements of different locations.
Durability: The stability of the lead sheet, combined with the sturdy door structure, provides a long-term, reliable radiation safety barrier.
Introduction
Lead lined doors are specialized shielding doors designed to prevent radiation leakage in medical and industrial environments. They are widely used in X-ray rooms, CT scanning rooms, and other radiation-controlled areas where reliable protection is required.
Manufactured with high-density lead sheets integrated into a durable steel structure, lead lined doors provide effective shielding against ionizing radiation while ensuring smooth operation and long-term durability. These doors are an essential component of radiation protection systems in hospitals, laboratories, and industrial testing facilities.
Key Features of Lead Lined Doors
Superior Radiation Shielding
The door is built with high-density lead sheets that effectively block X-ray and gamma radiation, ensuring compliance with medical radiation protection standards in hospitals and laboratories.
Durable Steel Door Structure
A reinforced steel frame structure provides excellent durability and long-term stability. The door can withstand frequent opening and closing in busy medical environments.
Customizable Lead Thickness
Lead thickness can be customized according to project requirements and radiation levels, typically ranging from 1 mm to 4 mm lead equivalent for different shielding needs.
Smooth and Reliable Operation
Lead lined doors are designed with high-quality hinges or sliding mechanisms to ensure smooth and stable operation in high-traffic medical facilities.
Corrosion-Resistant Surface Treatment
The door surface can be finished with powder coating or stainless steel panels, providing excellent corrosion resistance and easy maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Door Type | Swing Door / Sliding Door |
| Lead Equivalent | 1 mm – 4 mm Pb |
| Door Material | Steel Frame + Lead Sheet Core |
| Surface Finish | Powder Coated / Stainless Steel |
| Door Thickness | 40 – 60 mm |
| Standard Door Size | Customized According to Project |
| Application | X-Ray Room, CT Room, Laboratories |
Applications of Lead Lined Doors

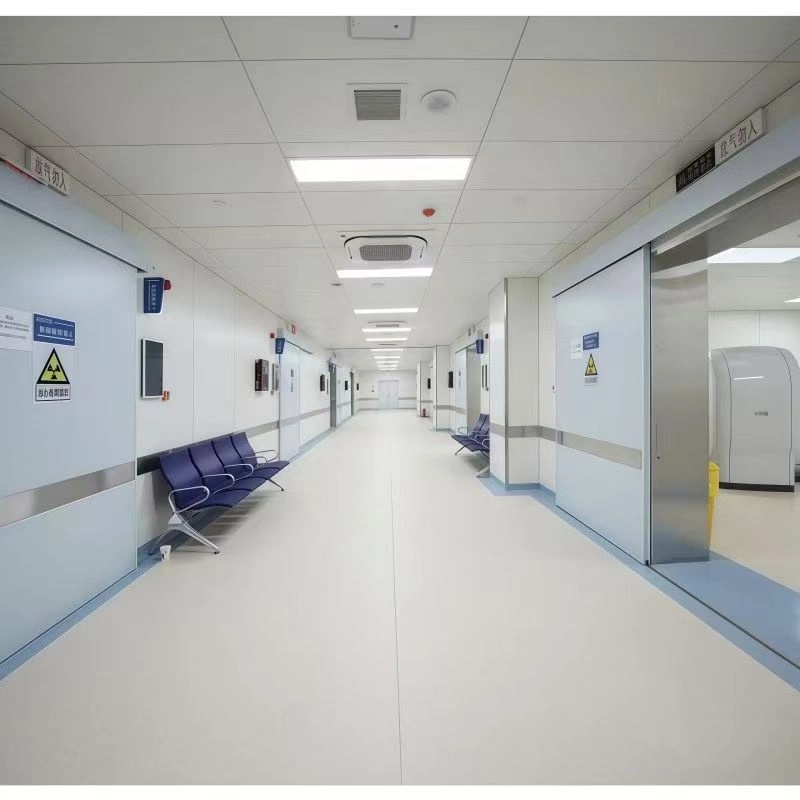

Hospital Radiology Departments
Lead lined doors are widely used in hospital radiology departments where medical imaging equipment such as X-ray and CT scanners produce ionizing radiation. These doors help prevent radiation leakage and ensure a safe environment for medical staff and patients.
CT Scan Rooms
CT scanning rooms require reliable radiation shielding to contain high-energy X-rays generated during imaging procedures. Lead lined doors provide effective protection and maintain compliance with medical radiation safety standards.
Dental X-Ray Clinics
Dental clinics frequently use compact X-ray machines for oral imaging. Lead shielding doors help reduce radiation exposure in small examination rooms and improve overall radiation safety.
Industrial Non-Destructive Testing Rooms
Lead lined doors are also used in industrial radiography facilities where X-ray inspection is performed on metal components and pipelines. Proper shielding prevents radiation from escaping the testing area.
Nuclear Medicine Rooms
In nuclear medicine facilities, radiation shielding doors are essential to control radiation exposure during diagnostic and treatment procedures involving radioactive materials.
Application Case
Hospital CT Room Radiation Shielding Project
Project Overview
A large hospital required a complete radiation shielding solution for its newly constructed CT scanning room. The goal was to ensure that the radiation levels outside the room remained within safe limits.
Customer Requirements
The hospital required a reliable radiation protection system that could effectively block X-ray radiation generated during CT scanning procedures. The shielding system also needed to comply with medical radiation safety standards.
Solution Provided
Our team designed a comprehensive radiation shielding solution using lead lined doors and high-density lead sheets. The lead sheets were installed inside the walls and doors of the CT room to prevent radiation leakage.
Products Used
Lead Lined Door (2 mm lead equivalent)
Lead Sheet for Wall Shielding
Radiation Shielding Door Frame
Project Results
After installation, the shielding system successfully passed radiation leakage tests. The CT room now meets the required safety standards and provides a secure environment for both patients and medical staff.
Conclusion
This project demonstrates how properly designed radiation shielding solutions can effectively protect hospital environments from X-ray exposure.
FAQ
Q:What is a lead lined door?
A:A lead lined door is a specialized door designed to block radiation such as X-rays and gamma rays. It contains a lead sheet core that provides effective radiation shielding and is widely used in hospitals, CT scan rooms, and industrial testing facilities.
Q:How thick should lead shielding be for X-ray rooms?
A:The required lead thickness depends on the radiation level and room design. In most medical imaging rooms, lead sheets ranging from 1 mm to 3 mm lead equivalent are commonly used to ensure adequate radiation protection.
Q:Where are radiation shielding doors used?
A:Radiation shielding doors are commonly installed in medical radiology departments, CT scanning rooms, dental clinics, cancer treatment centers, and industrial non-destructive testing facilities where radiation exposure needs to be controlled.
Q:Can lead lined doors be customized?
A:Yes. Most radiation shielding doors can be customized according to project requirements, including door size, lead thickness, opening type (sliding or swing), and surface finish.
